Application

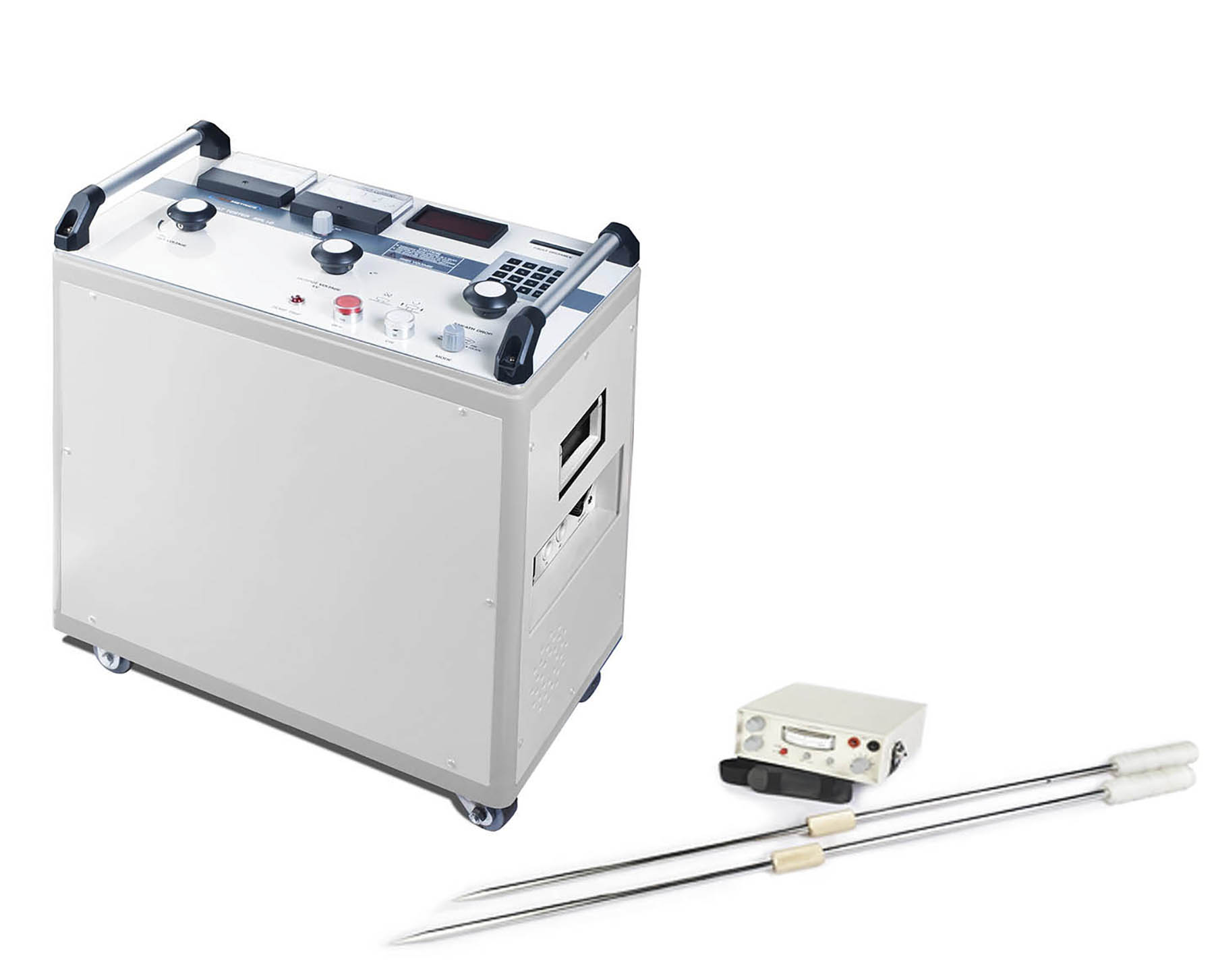

It is use to Conditioning / DC Test / Burn, Pre-locate and Pin-point sheath faults in underground extra high voltage power cable transmission networks.
Key Features
- Test Voltages 0 - 3, 0 - 6 & 0 - 12 kV DC continuously variable.
- Test Current 3 kV - 400 mA, 6 kV - 200 mA, 12 kV - 100 mA DC.
- Pulse ratio for Pin-pointing 1:3 second and 1:6 second selectable, ON OFF time ratio.
- Fault distance Calculator LCD display-16x2 characters with back light.
- Cable sheath fault pin pointing by pool of potential method.
- Burn mode for conditioning the sheath fault.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Receiver - Sheath Fault Locator EFL 1.
