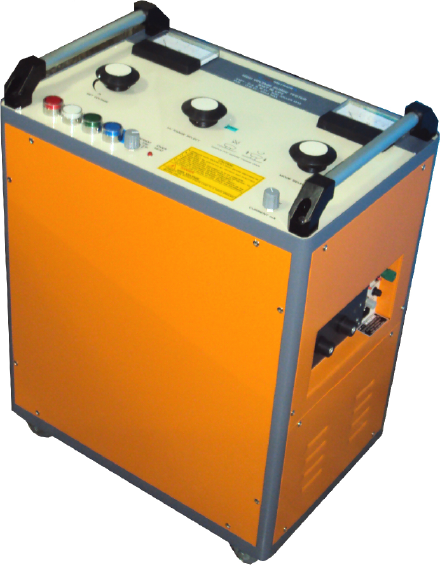

HIGH VOLTAGE SURGE TESTER SWT 16 CPT

Surge Tester / Thumper

Cable Route Tracer

Cable Fault Pre Locator

Surge Receiver / Pin point Locator

High Pot tester

Sheath Fault Tester

Cable Identification System

Compact System

Trolley Mounted System

Van / Trailer Mounted System

Low Cost Van System

Cable Burn Down Equipment

Soft Discharge Rod

IP67 / IP54 Products





Application
It is used to pin-point underground cable faults in acoustic mode with the help of suitable surge wave receiver and to perform DC high voltage di-electric test up to 16 kV in power transmission and distribution cable networks.
Key Features
  • Working Mode Surge & DC Test.
  • Pin-point location of cable faults in Medium and High voltage cables by acoustic method.
  • Output Surge voltage selectable ranges 4kV, 8kV, 16kV.
  • High energy of 500 Joules at each range (Optional 1000J/1500J).
  • Full energy delivering capacity at each select range.
  • Single Impulse and 1.5, 3 & 6 seconds intervals Sequence.
  • Perform DC test up to 16 kV (Optional 20kV).
  • Output DC Current 10 mA / 20mA.
  • Burn Current 60mA for short period.
  • Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
  • Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode with suitable pre-locator unit.
  • Power Supply 230V AC + 10%, 50 Hz, Single phase.
  • Medium Network 11kV.
